Debugging Artifacts

pierre.m
2018-5-9 12:31

Often when tracing issues I need some visual feedback, and often it’s

weird and interesting.

A first one, hope to follow up on this.

normal

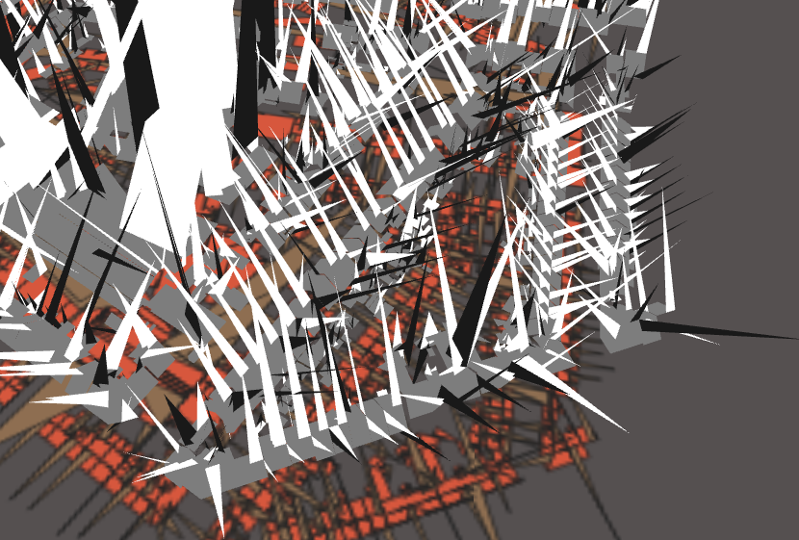

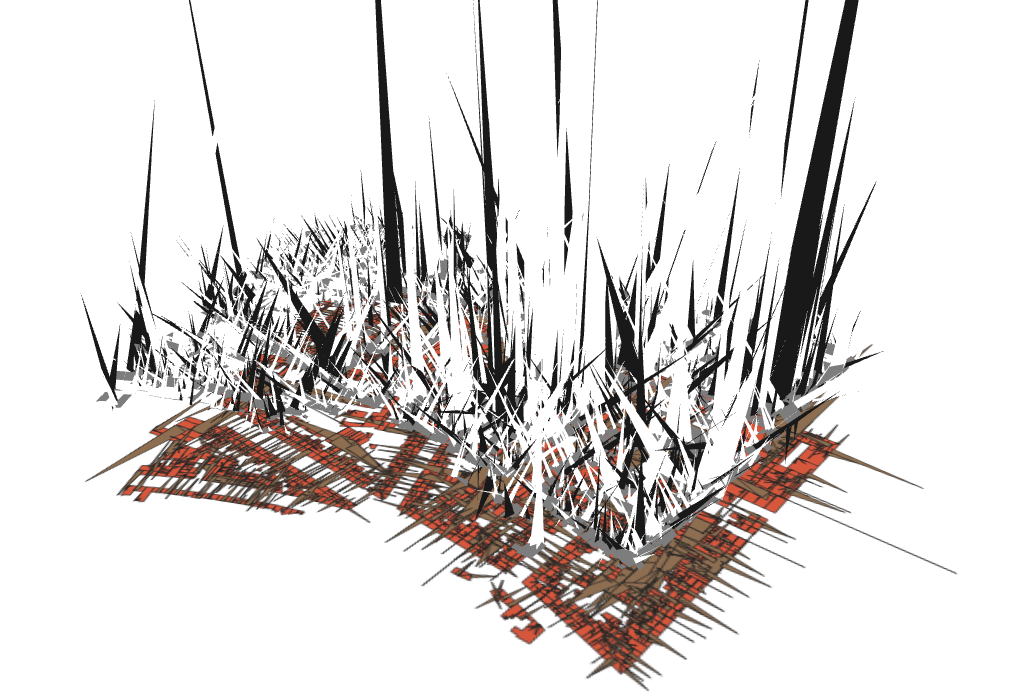

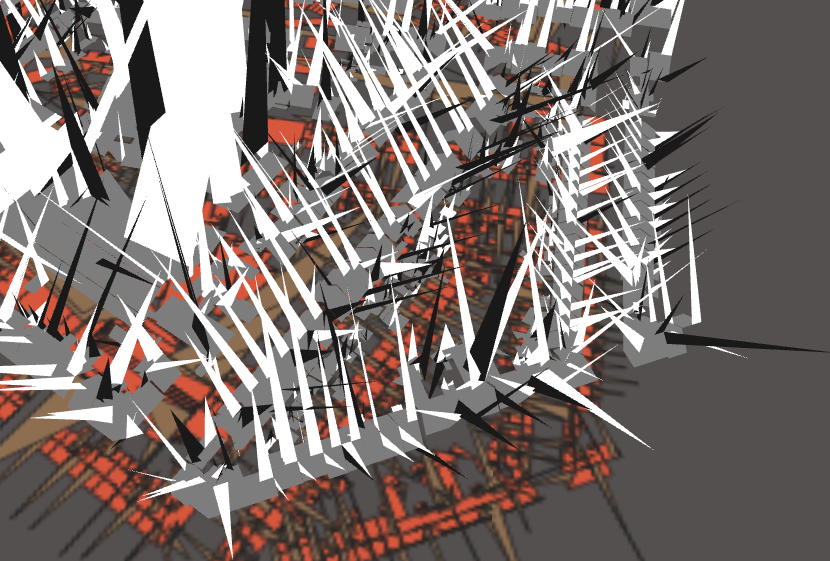

Flatten triangles, took days!

rooftop grid

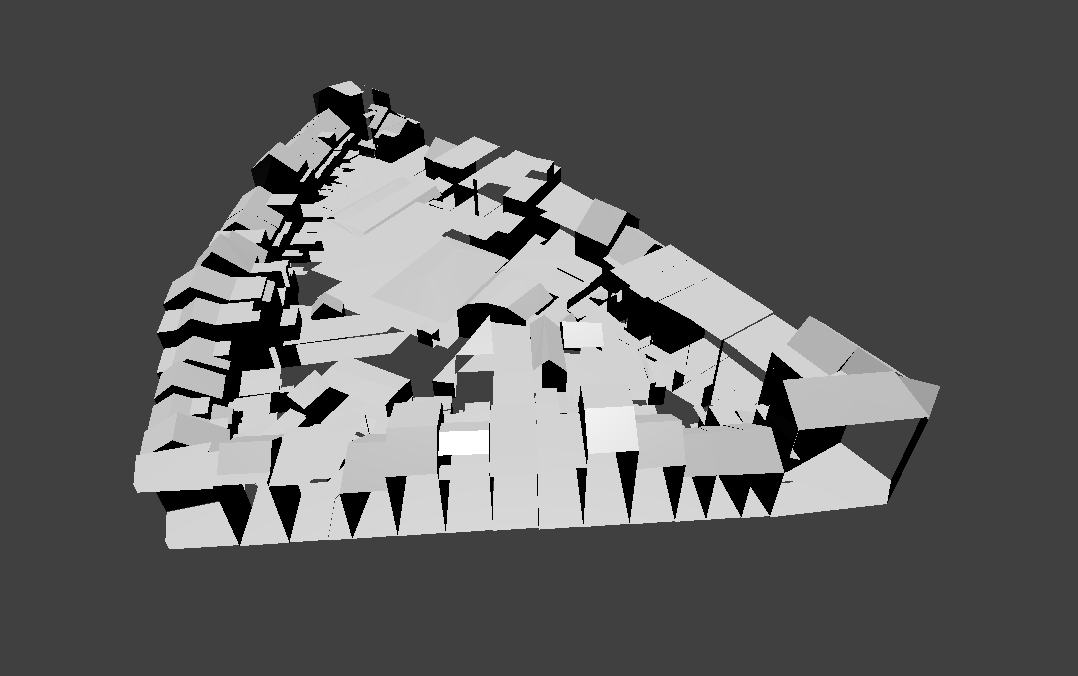

first test import from QGIS to blender.. looks good !

On a related note, in order to compute radiation on the whole region’s roof

surface, we need to carry out circa 8244586116744 operations, mainly

intersection between points on roof-sun line and other buildings. This is

insane.

Projected kilometers away and back.

les toits de Bruxelles typologisés.

3D has to start somewhere

This one, few lines, many days.

Une dalle complete d’URBIS3d, question performances ce n’est pas encore

super au point. Mais ca laisse songeur

Avec une tentative de profondeur

Qui se stabilise un peu.

Et de perspective, et j’arrete la

Et ça en 10 lignes…

La carte de l’ombre en terrasse n’a qu’à bien se tenir pour la rentrée!
